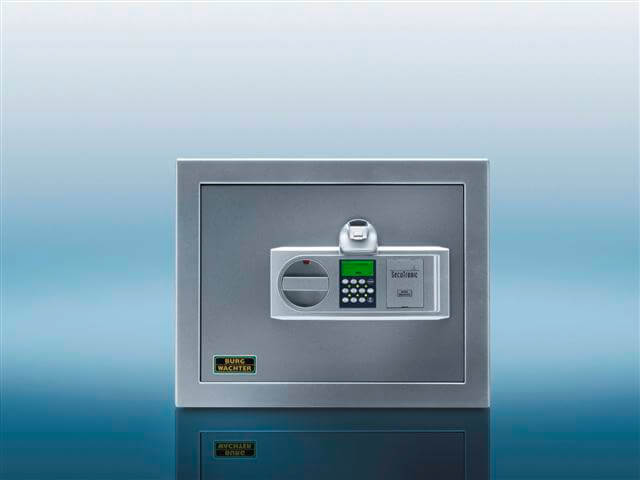

DIPLOMAT SAFE

The Diplomat safe is burglar and fire-proof and is available with 3 different locking systems: Double-bit lock, adjustable mechanical combination lock and NEW: with integrated finger scan module.

SECURITY LEVEL / RESISTANCE LEVEL I

Type-tested and ECB-S/VdS-monitored security
Burglar and fire-proof
Double-walled body, walls with special additional reinforcement
Double-walled door, door panel 10 mm SM steel, door with double,
non-resettable emergency locking system, patented
Locking on three sides with strong square bolts, locking bolt
each with 2 integrated steel rollers as double flame-cutting protection,
Continuous rear gripper rail on the hinge side
prepared for wall and floor anchoring,
(MTD 46 and MTD 48 without floor anchoring), with fastening material
Fire protection material in carcass and door in accordance with DIN 4102-A1, carcass with all-round fire rebate
File depth, 1 adjustable shelf, also available with internal safe
Two-tone paint finish as standard (gray/white), special paint finish on request
Security plus: special anti-puncture device in front of each locking bolt and in front of the lock
Left-hand door hinge: models MTD 34 – MTD 48 in versions S and E also available with left-hand hinge on request for an additional charge

Execution S:

New “SecuSafe” high-security double-bit lock
VdS-tested; ECBS-certified EN 1300 class B, can be used from resistance grade N to V, 19 locking devices, with forced locking, 50,000,000 different locking operations
Added security if the key is lost – can be changed to a new locking system immediately Several safes can easily be set to a common locking system
The innovative technology of these locks ensures extremely high tamper resistance, resistance to violent attacks and maximum service life

Version C:

Adjustable, mechanical combination lock “SecuMatic”, VdS-tested; ECBS-certified EN 1300 Class B
Digital combination lock with easy handling Genuine 1,000,000 different setting options
Problem-free changeover, numbers click into place

S and C versions are available in the following sizes:

Article	Outside approx. h x w x d	Inside approx. h x w x d	Door approx. h x w	Weight	Contents
	mm	mm	mm	kg	l
MTD 34	380 x 500 x 440	255 x 370 x 300	255 x 340	85	28,0
MTD 35	470 x 500 x 440	345 x 370 x 300	345 x 340	100	38,0
MTD 36	625 x 500 x 440	500 x 370 x 300	500 x 340	125	55,0
MTD 38	985 x 500 x 440	860 x 370 x 300	860 x 340	175	94,2

Version E:

NEW: with integrated finger scan module Programming of user names, access times and rights, calendar functions and reading out the history memory are possible via optional TSE PC software
with tamper protection
Batteries can be changed from the outside
No code loss without batteries
Electronic combination lock “SecuTronic”, VdS-tested; ECBS-certified EN1300 class B incl.
Batteries Mignon LR 6 AA
6-digit secret code, real 1,000,000 setting options
Intelligent user guidance
Easy recoding at any time
Up to 10 six-digit user codes, up to 24 finger scans and up to 300 optional TSE E-KEYs can be managed via the keypad

Version E is available in the following sizes:

Article	Outside approx. h x w x d	Inside approx. h x w x d	Door approx. h x w	Weight	Contents
	mm	mm	mm	kg	l
MTD 34 E	380 x 500 x 440	255 x 370 x 300	255 x 340	85	28,0
MTD 35 E	470 x 500 x 440	345 x 370 x 300	345 x 340	100	38,0
MTD 36 E	625 x 500 x 440	500 x 370 x 300	500 x 340	125	55,0
MTD 38 E	985 x 500 x 440	860 x 370 x 300	860 x 340	155	94,2
MTD 46 E	737 x 500 x 440	500 x 370 x 300	500 x 340	175	55,0
MTD 48 E	1097 x 500 x 440	860 x 370 x 300	860 x 340	235	94,2
